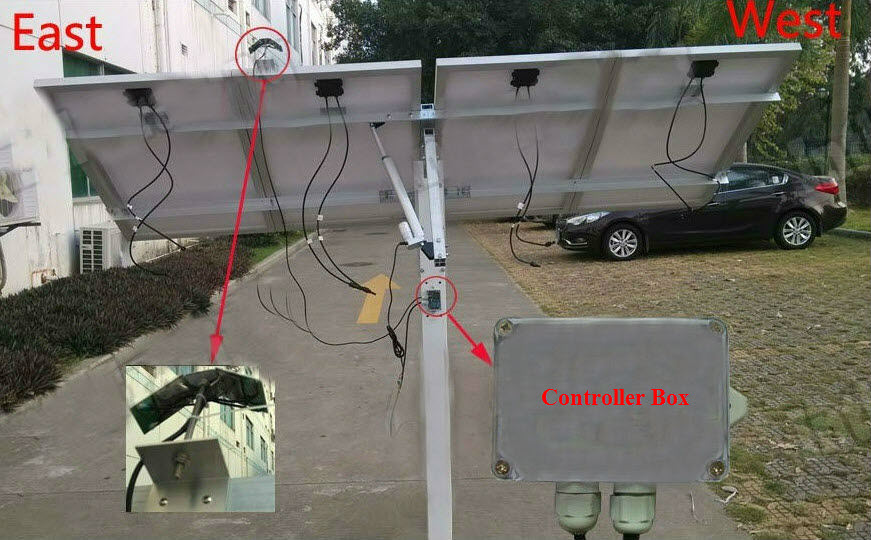

Complete Single Axis solar Panel System Tracker Tracking Electronic Controller

This controller can control the single axis (oblique single axis) system to tracking the sunlight. It will work in sunny day and rest in cloudy day, during the night it will keep flat.

Features:

- 100% new condition and high quality

- Can work both in sunny day and rest in cloudy day

- During the night it will move back to the east

- It can aim at the radiant point in cloudy days

- The sensitivity of light sensor can be adjustable

- Interval tracking(can maximum save the power consumption)

- Wrong battery pole connection protection

- Over current protection With a changeable fuse

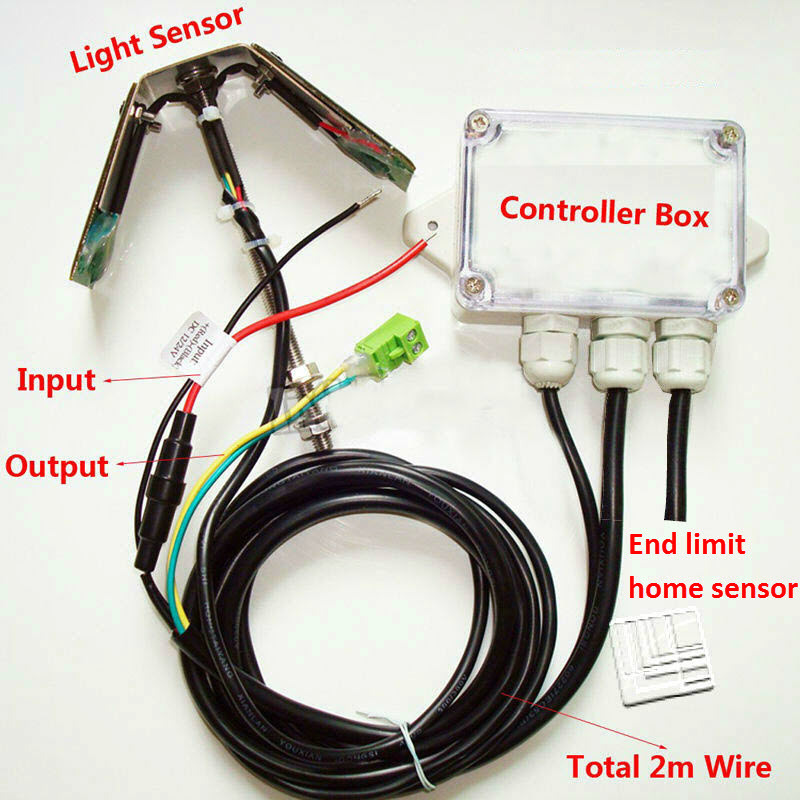

- Come with:End limit ,Left limit,Right limit,Home sensor

Specification of the controller box:
Size: 115x80x35mm
Input: DC 12/24v
Max load current: 6A
Waterproof rate: IP65
Operating temperature: -20 to +60 Degree
The control precision is ±2 Degree

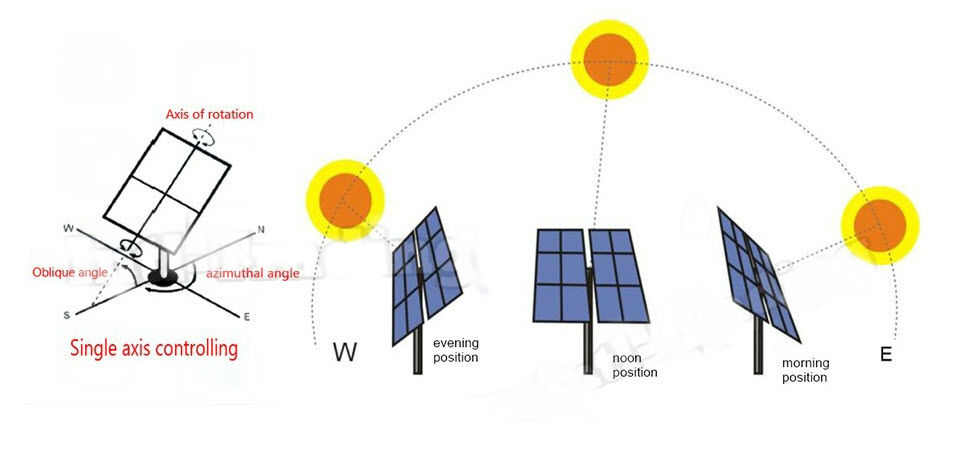

Single axis solar tracking system diagram:

APPLICATIONS :

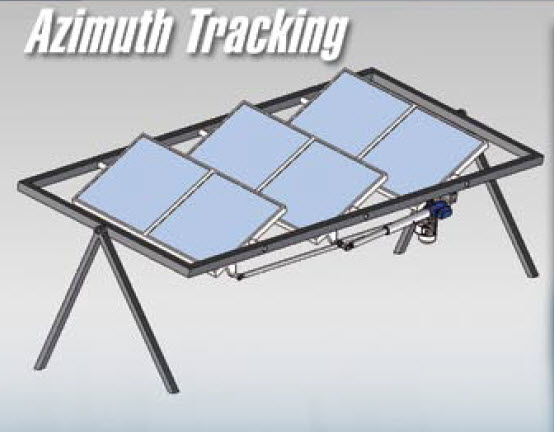

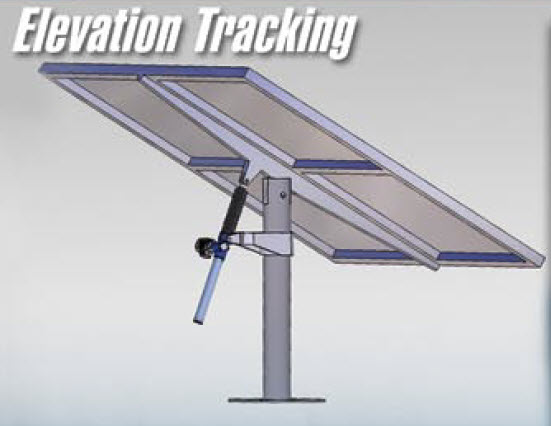

Solar Cell Auto-Tracking System	Solar Panel Automatic Tracking Control

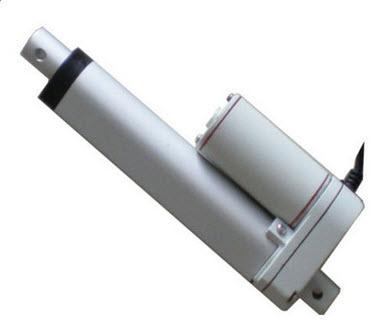

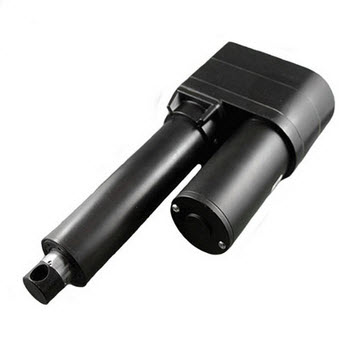

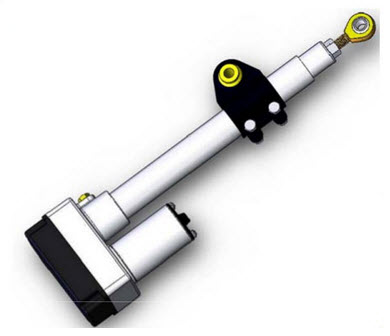

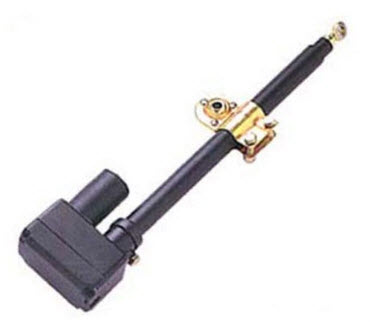

Linear Actuators

Right Angle Design Worm gear drive Acme or balls screw execution Linear speed up to 100 mm/sec

Parallel Design Timing belt drive Acme or balls screw execution Linear speed up to 450 mm / sec
